4G ball machines (18X) Camera Humanoid Detection & Auto Tracking Camera TF Card 128G Two Way Audio Full Color Night

Write a review
  • Sale
  • Dhs. 980.00
  • Regular price Dhs. 1,300.00
Tax included. Shipping calculated at checkout.


4G ball machines (18X) Camera Humanoid Detection & Auto Tracking Camera TF Card 128G Two Way Audio Full Color Night

Key Specifications/Special Features:

How the trackball works:
Based on the human figure recognition push coordinates to the ball machine, the ball machine rotates according to the position of the coordinate after receiving the coordinates. The movement fully takes over the ball machine to realize the tracking function.
The ball machine rotates smoothly during the whole tracking process, and the image is smooth and does not shake.
Main Features of the product:
Speed Dome
  1. support level 360 degrees without limit rotation, vertical 90 degree
  2. built-in high sensitivity microphone, pickup range of 100 square meters. And support speaker output
  3. support infrared light automatic / manual control, and support infrared light brightness adjustment
  4. support photosensitive resistance sensitivity adjustment.
  5. support level 360-degree scanning, and support scanning speed adjustment
  6. support 256 presets
  7. support 3 groups of cruise, and support cruise speed adjustment and cruise point dwell time adjustment.
  8. support limit scan, and support scan speed adjustment.
  9. support a Home position, and support time settings
  10. support idle action
  11. support the focus mode of three different application scenarios.
  12. support temperature control mode (requires additional thermostat)
  13. Supports dual light source mode. White light is on when object moves, and image is color.

18x Zoom Camera
  1. support 18x optical zoom, lens focal length: 5.3-96 mm
  2. Used Starlight-level CMOS chip IMX335
  3. HI3516EV300+IMX335 Rate: Support 5MP (2560*1920), 20 frame rate, 4MP (2560x1440) 25 frame rate
  4. support H.264/265/265+ compression algorithm.
  5. TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP
  6. support multiple network protocols TCP / IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc
  7. support P2P connection
  8. support for audible alarms, and can customize the alarm sound
  9. support P2P alarm push
  10. support SD card storage, maximum support 128GB (only for devices that support SD card + WIFI version)
  11. support SD card main stream capture (only for devices that support SD card + WIFI version)
  12. support imges FTP upload
  13. support ONVIF Protocol
  14. support RTSP push stream
  15. support humanoid recognition, and support humanoid recognition alarm linkage :video, capture, FTP upload, voice alarm, APP alarm push, alarm video. And support 4 personal shape recognition area (can be used for regional intrusion settings)
  16. support SMD (including Smart PQ, Low Bitrate, humanoid detection)
  17. support alarm input and output (optional)
  18. support DDNS dynamic domain name&
Image sensor 1/2.8" CMOS IR cut network megapixel IP
Resolution

5MP (2560x1920)

Chipset

HiSilicon 3516EV300+IMX 335 (5MP Camera)

Pixels

5MP (2560x1920)

Lens mount Built-in Varifocal 5.3-96mm 18X Optical Zoom 5MP lens
IR Led Built-in array 6 pieces White Light LED + 4pcs Array IR LED
IR distance 80 Meters
Full Color Distance 50 Meters
System H.265+ compression, dual stream (0.1M-8Mpbs adjustable), AVI format

Humanoid detection

support the detection of up to 3 humanoid targets, can set four independent detection areas,

and support humanoid detection alarm trigger (sensitivity:high ,medium and low can be set)

Alarm linkage

alarm sends the picture to the specified mailbox; the alarm uploads the picture is uploaded to the FTP server,

SD card record, SD card capture,APP Messages push,audio output;

Motion detection

Four independent detection areas can be set (sensitivity: High ,Medium ,Low can be set)

Storage function

Supports up to 128G Micro SD card storage. supports alarm and scheduled video storage

Image settings

Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable

Network interface 1 RJ45 Ethernet interface, 10/100M adaptation
Protocols RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP/ONVIF
Supports  Dahua, HK NVR, VM platform, P2P (ONVIF), SDK, UC2 Web client, mobile phone
Supports Web IE, OSD menu, PC and mobile phone real-time video transmission
CMS Free 32CH IP client and 64CH CMS software
Humidity 0 to 95% RH (non-condensing)
Working temperature Outdoor: -10 to +50°C
Voltage input Power 12V DC

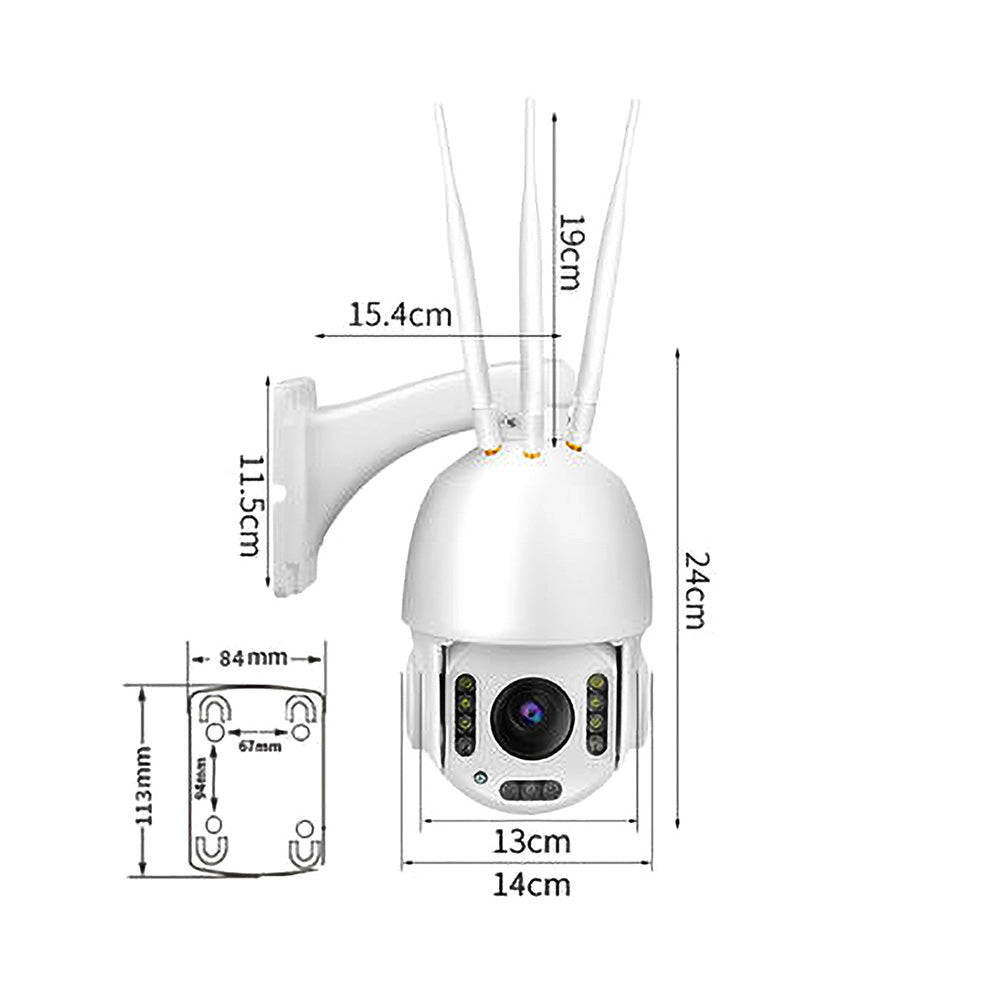

Packing size 20*10*10cm
Weight Approximately 1kg
