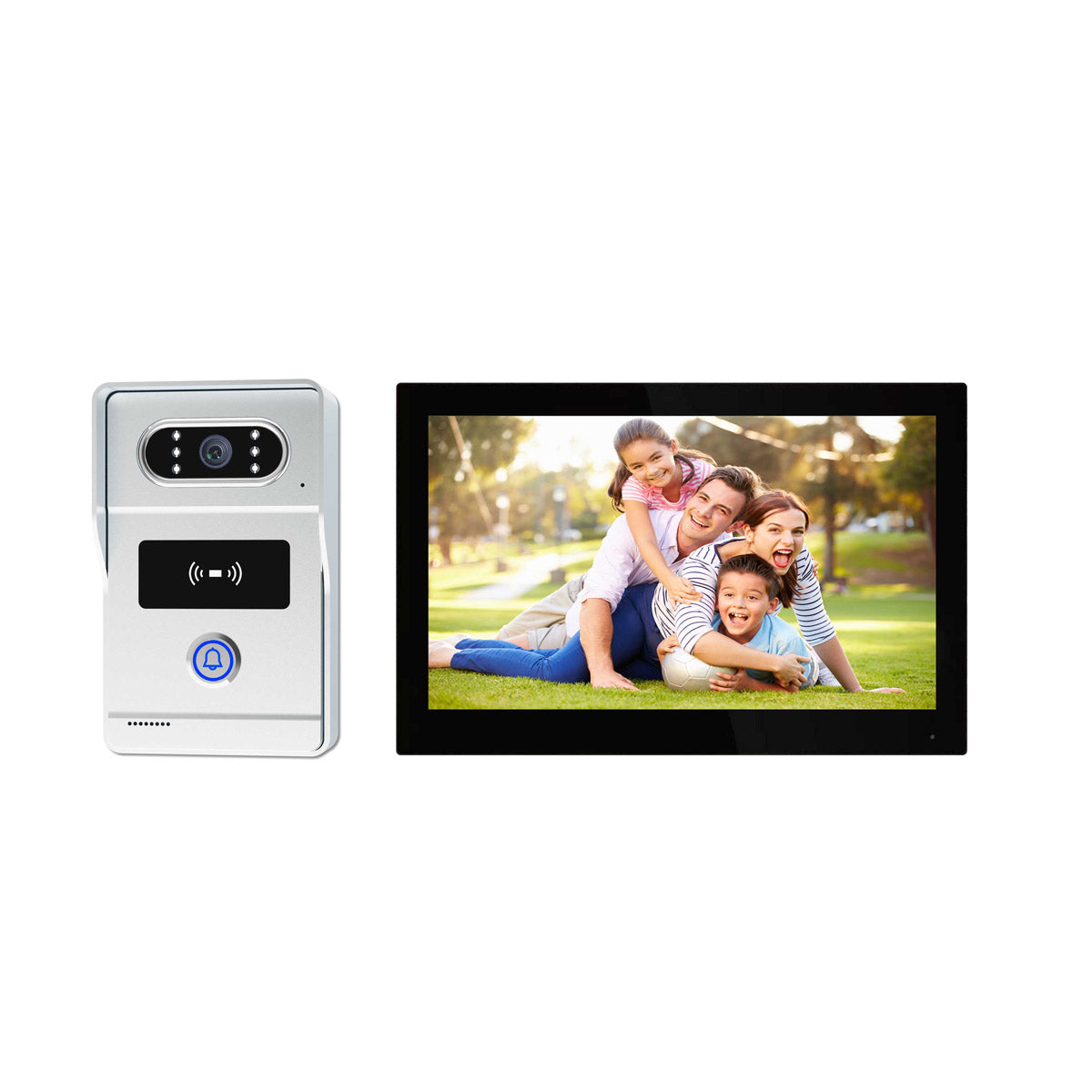

CRONY TUYATY75THTD2 Video Doorbell System 7 Inch AHD Wired Video Intercom with 1080P Camera IP65 Waterproof Touch Screen Monitor Support Remote Unlocking Motion Detection and APP Control

 TUYATY75T-HTD2 7inch AHD Wires Video doorphone

【1】HD Touch Monitor & AHD 1080P Camera
High-resolution 1024*600 display with a 2.0MP full HD wide-angle camera provides crystal-clear video and a broader view of your entrance.

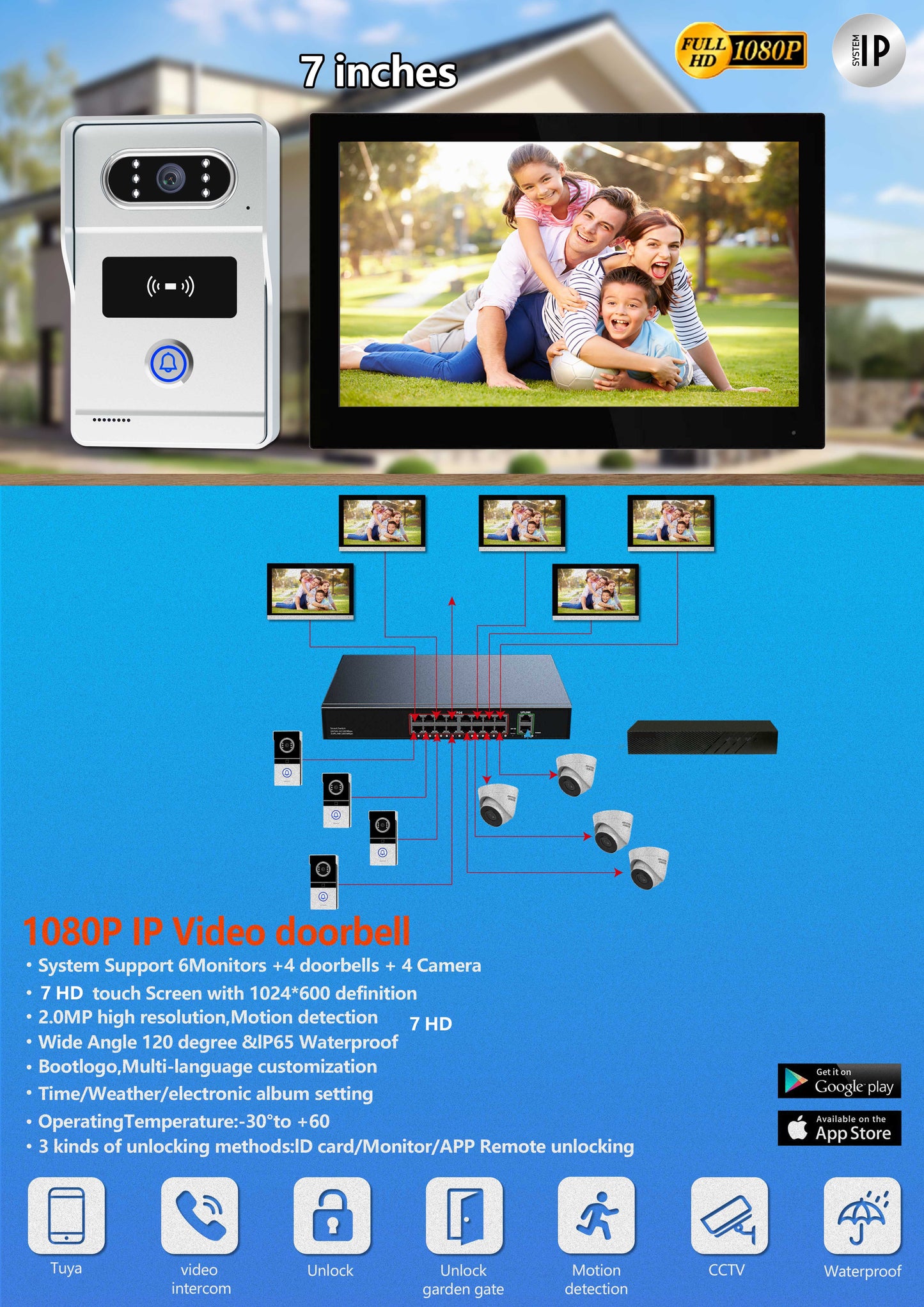

【2】Multi-Unit & Multi-Camera Support
This intercom system supports up to 6 indoor monitors, 4 doorbell units, and 4 surveillance cameras—ideal for large households or buildings.

【3】Weatherproof & Motion Detection
With IP65 waterproof rating and 120° wide-angle view, this system functions reliably in all weather. Smart motion detection enhances security.

【4】3 Unlocking Methods & Remote Control
Unlock the door via ID card, indoor monitor, or smartphone app. Enjoy hands-free security and real-time visitor interaction from anywhere.

Model: TUYATY75T-HTD2 7inch AHD Wires Video doorphone

1080PIp Video doorbel
System Support 6Monitors +4 doorbells + 4 Camera
7 HD touch Screen with 1024*600 definition
2.0MP high resolution,Motion detection7 HD·Wide Angle 120 degree &lP65 Waterproof.Bootlogo,Multi-language customization.Time/Weather/electronic album OperatingTemperature:-30°to +60
3 kinds of unlocking methods:lD card/Monitor/APP Remote unlocking

• Function: Supports remote control of calling/unlocking/recording/taking photos/leaving messages/motion detection through the TUYA Smart APP
• Visual intercom, monitoring, indoor unlocking, no disturbance mode, ringtone selection, color, brightness, contrast, volume adjustment
7-inch IPS touch screen display
• Resolution: 1024 * 600
• Material: ABS+high hardness glass surface plate
• Ringtones: 10 songs
• Memory: Supports up to 64GB TF card
• Languages: Chinese, English, Russian, French, German, Portuguese, Spanish
• Power specifications: AC100-240V 50Hz-60Hz DC15V 1.2A (optional for American, European, British, and Australian standards)
• Power: Standby state 0.2W Working state: 30W
• Operation method: Touch screen display
• Usage distance: 150 meters
• Use wire: Cat5 or cat6 network cable connected
• Product size: 237 * 117 * 30mm
• Maximum combination: 2 door mounted units+2 analog cameras+6 indoor units
• Installation method: fixed with hanging board
===========================================================================
• Camera: AHD HD 2.0MP, 1080P HD camera and 140" viewing angle Model
• Video decoding: H264
• Photosensitivity: 0.001 lux
• Night vision: LED * 6
• Night vision distance: 3 meters
• Camera angle: 140 °
• Operating temperature: -40--+60 ℃
• Material: Aluminum alloy brushed panel+ rain cover
• Rain proof: Rain cover
• Product size: 145x90x45mm (including rain cover)
• Use wire:  Cat5 or cat6 network cable connected
• Installation method: Flat installation
• Power supply mode: indoor unit power supply, door unit power supply
• Unlocking method: indoor unit unlocking, card swiping unlocking
• Unlock signal: voltage signal; Open normally closed signal
• Optional shell color: gold/silver
• Working temperature: -20--+60 ℃
• Available shell colors: tan/silver
