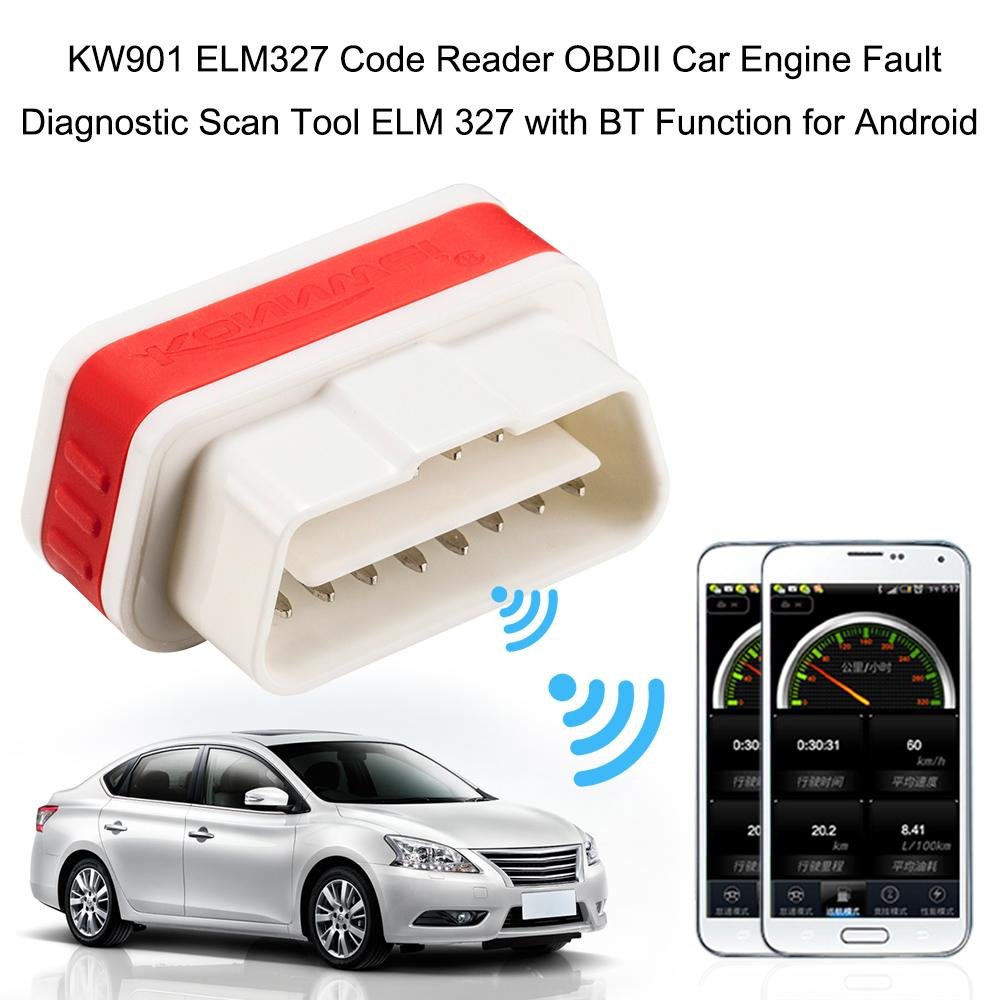

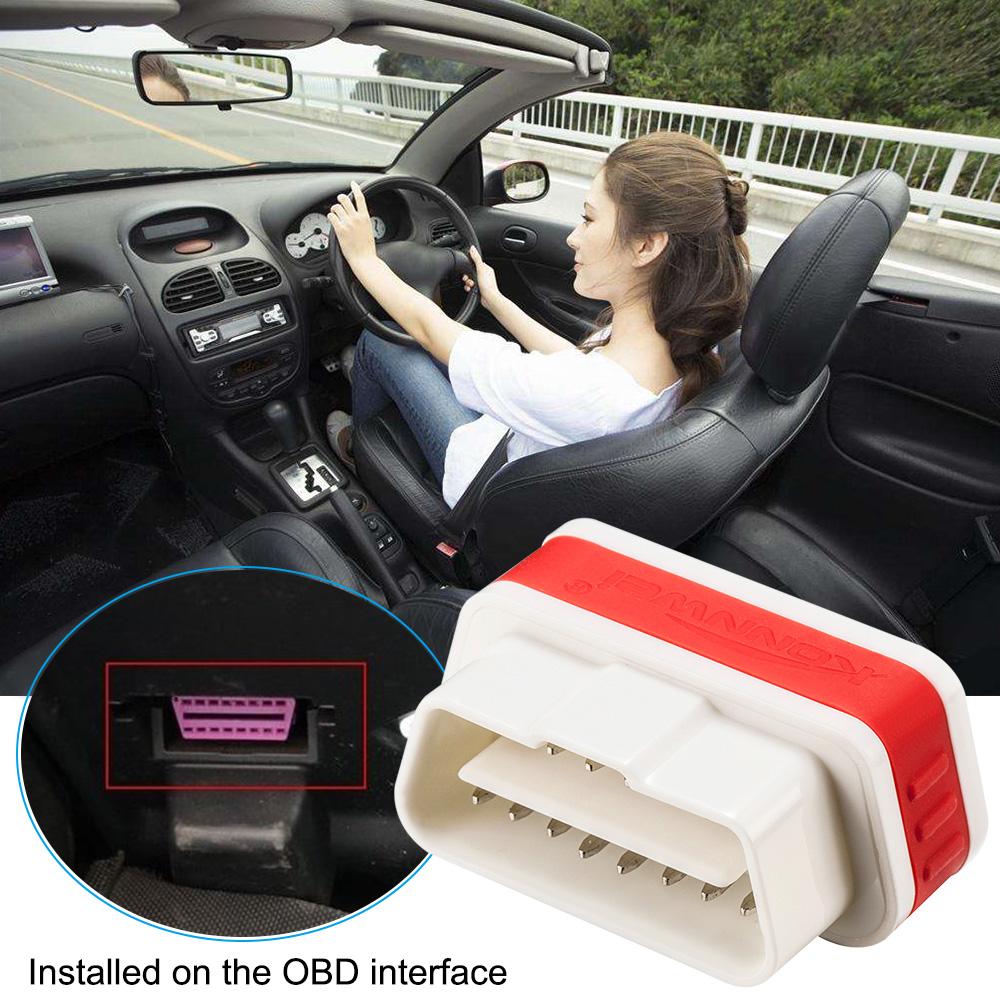

The device is a small adapter connected to the vehicle's OBD connector. In Bluetooth, it connects to any computer, tablet or smartphone with associated diagnostic procedures. By doing these simple operations, you can:
Measure fuel consumption.
Displays real-time car operating performance such as boost, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, oxygen sensor values, air and more.
Turn off the MIL (Check Engine signal).
Download data to external media in a variety of formats for later printing.
Record multiple parameters, display real-time graphs and more.
With the kw901, you can perform a full-computer diagnostic car and even fix minor glitches without resorting to service stations.
The KW901 scan tool is a high quality automotive scan tool that supports all OBD-II.
It is capable of reading and erasing codes, live data, MIL trouble indicator, digital control panel.

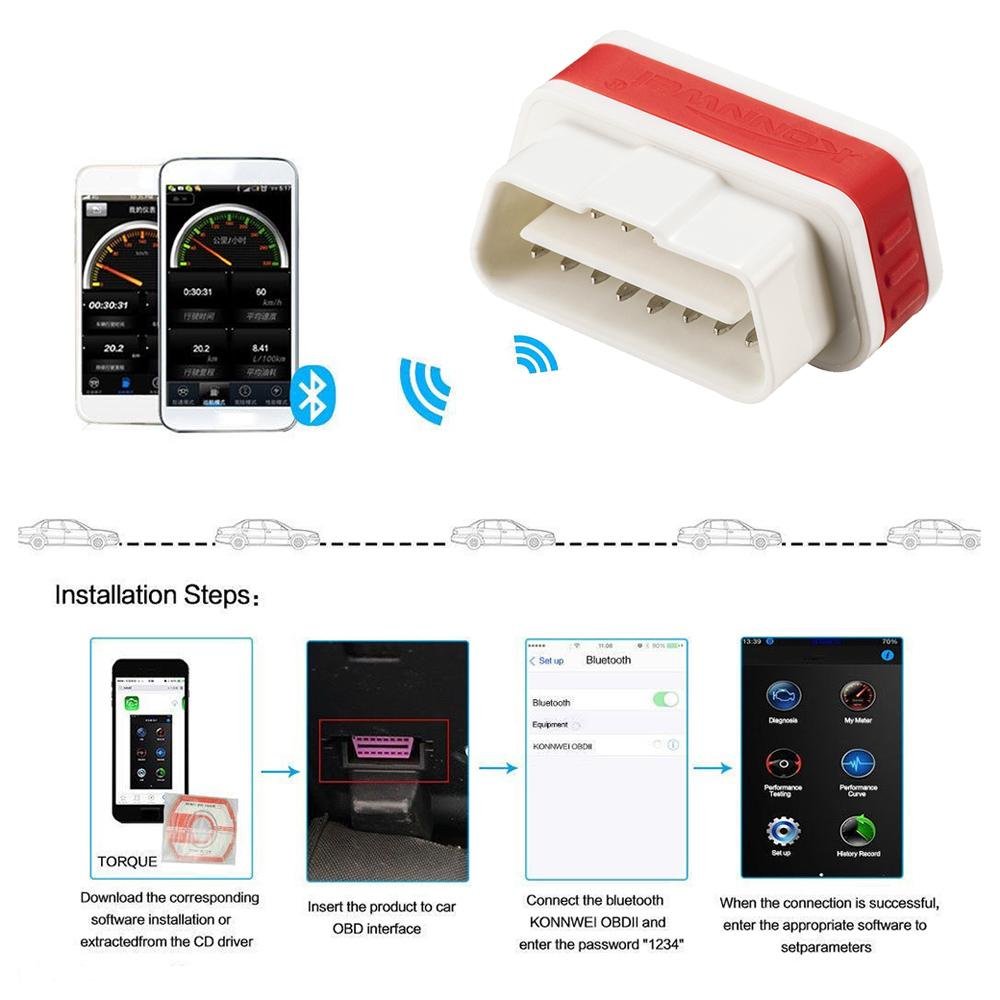

The Bluetooth adapter works only with the Android device, the WiFi adapter works with Android, IOS device.
Voltage Rating (VDD): 12V
RF Sensitivity (Basic Rate): -85db
Modulation Mode: GFSK
Frequency Range: 2402 ~ 2480MHZ
Transmission Range: 10M
Bluetooth Profile: SPP
UART Params: 38400.8, n, 1

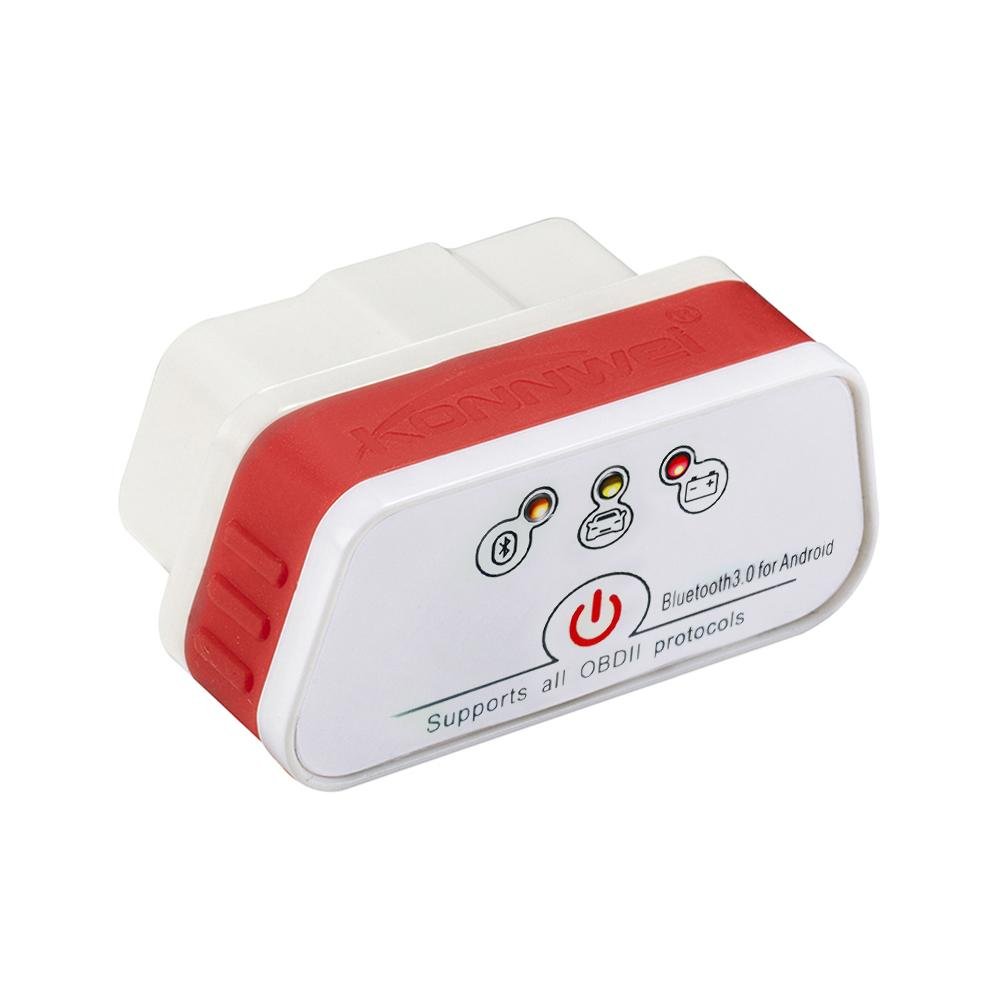

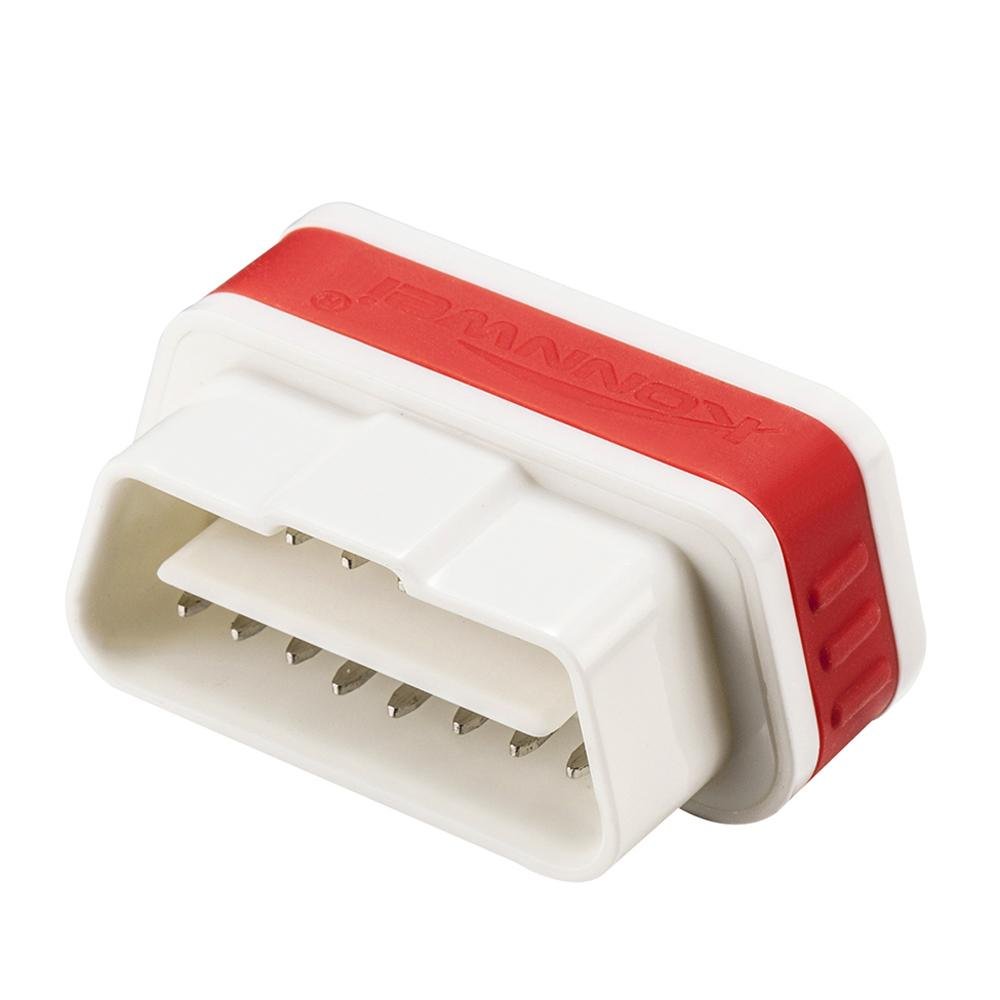

Structure small and compact. Connect and never disconnect
Stable wireless connection
No wires or batteries (adapter is powered by diagnostic size sockets)
Stop communication, wait half an hour, sleep automatically
Supports all OBDII protocols
The adapter uses the fastest and most reliable ARM chips
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISOISO-7,730-4 KWP (init fast, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID * 250 Kbaud)
B.USER1 CAN (* 11 bit ID, 125 Kbaud *)
C.USER2 CAN (* 11 bit ID, 50 * kbaud)
default settings (user adjustable)
|Dimensions and Weight||
Package Weight: 0.045kg
Pacakge Size: 6.5 x 2.5 x 10CM
