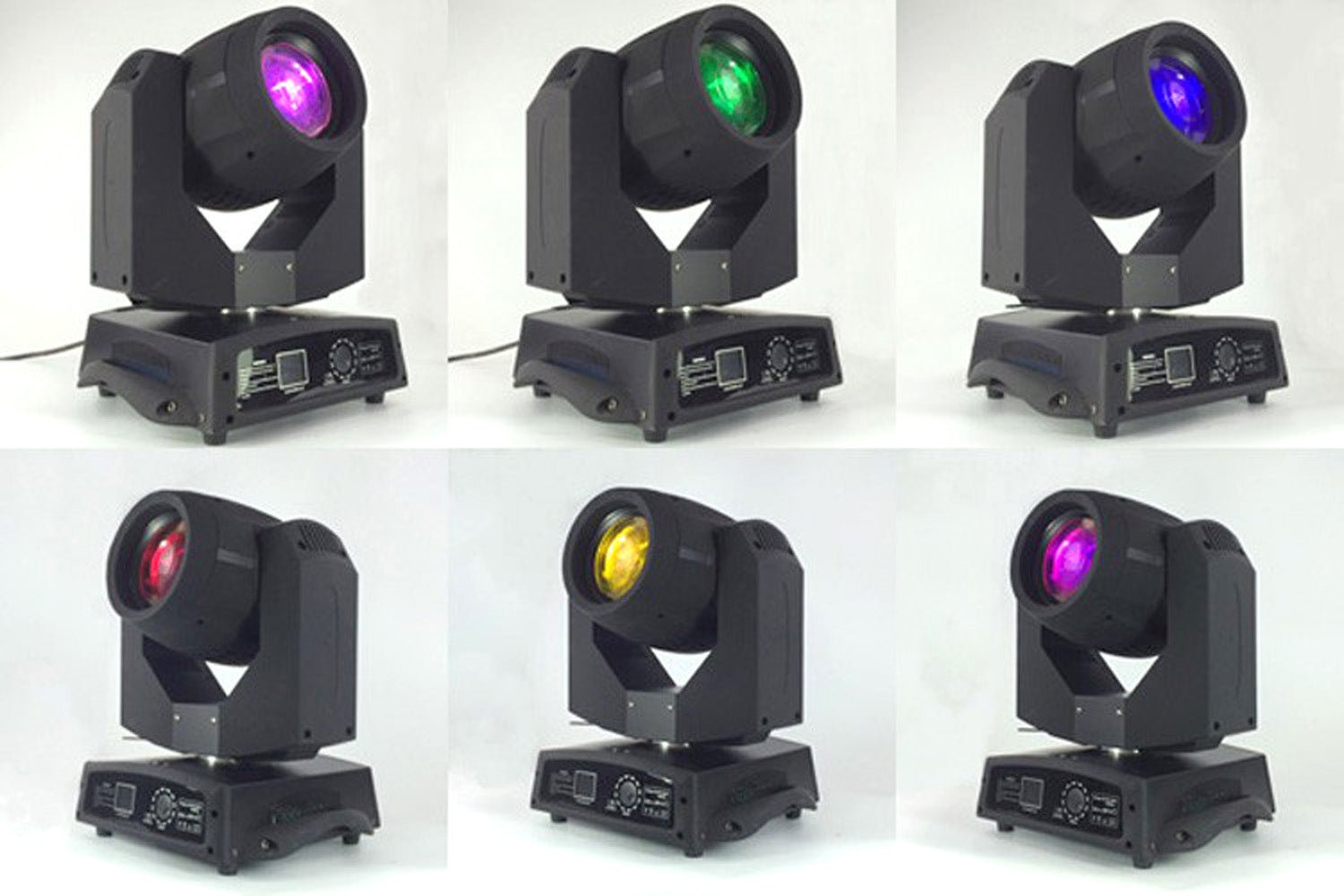

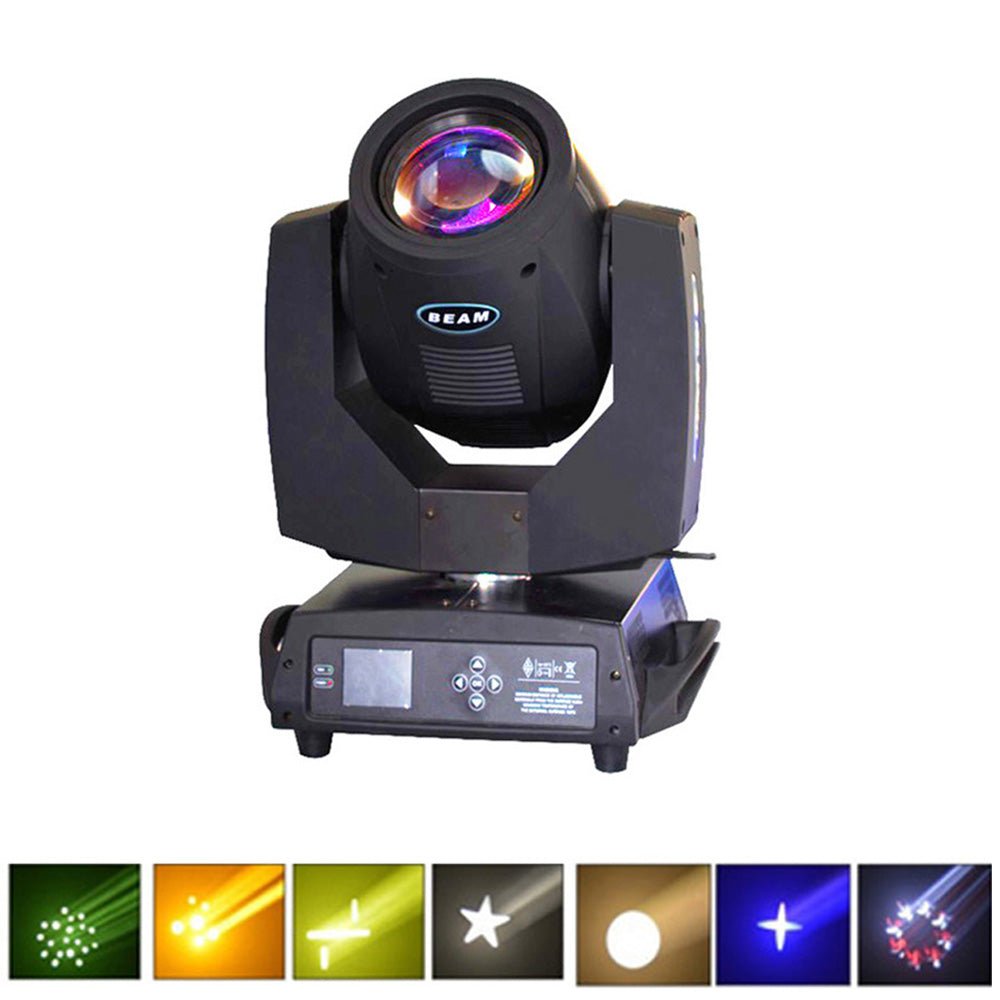

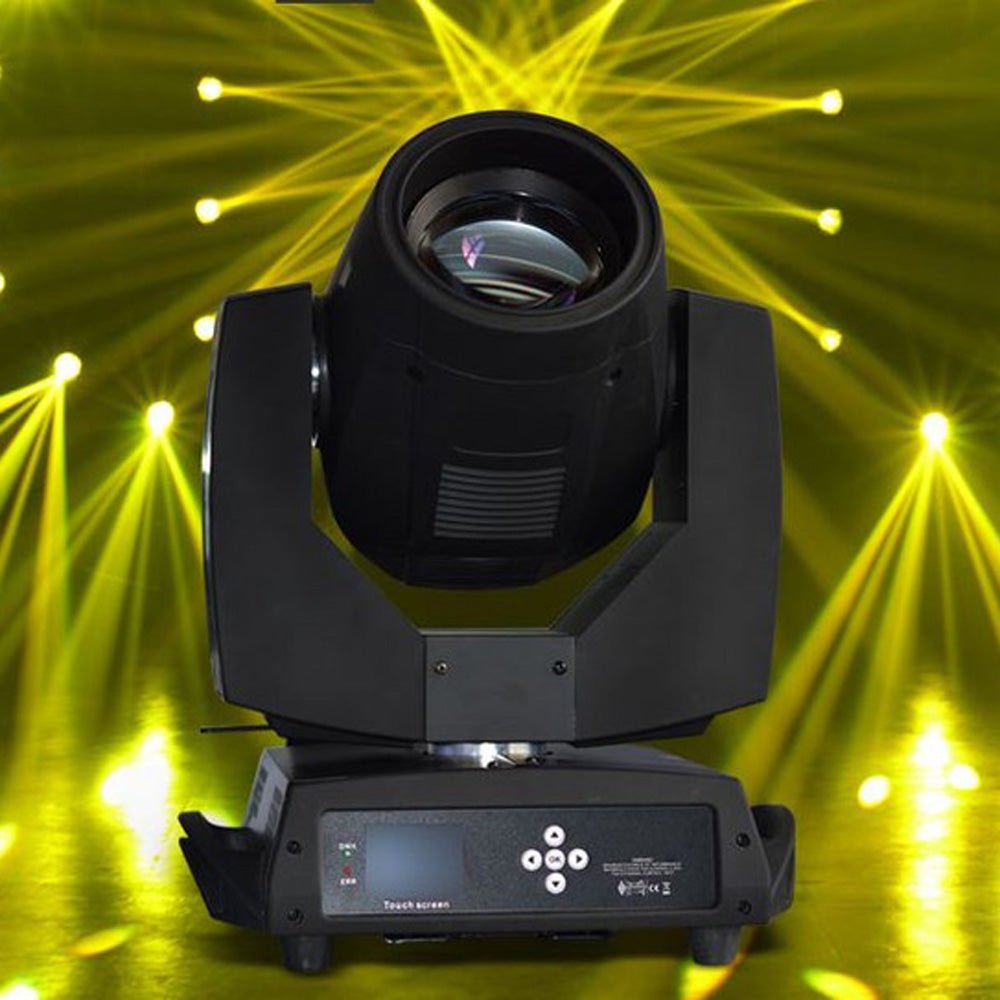

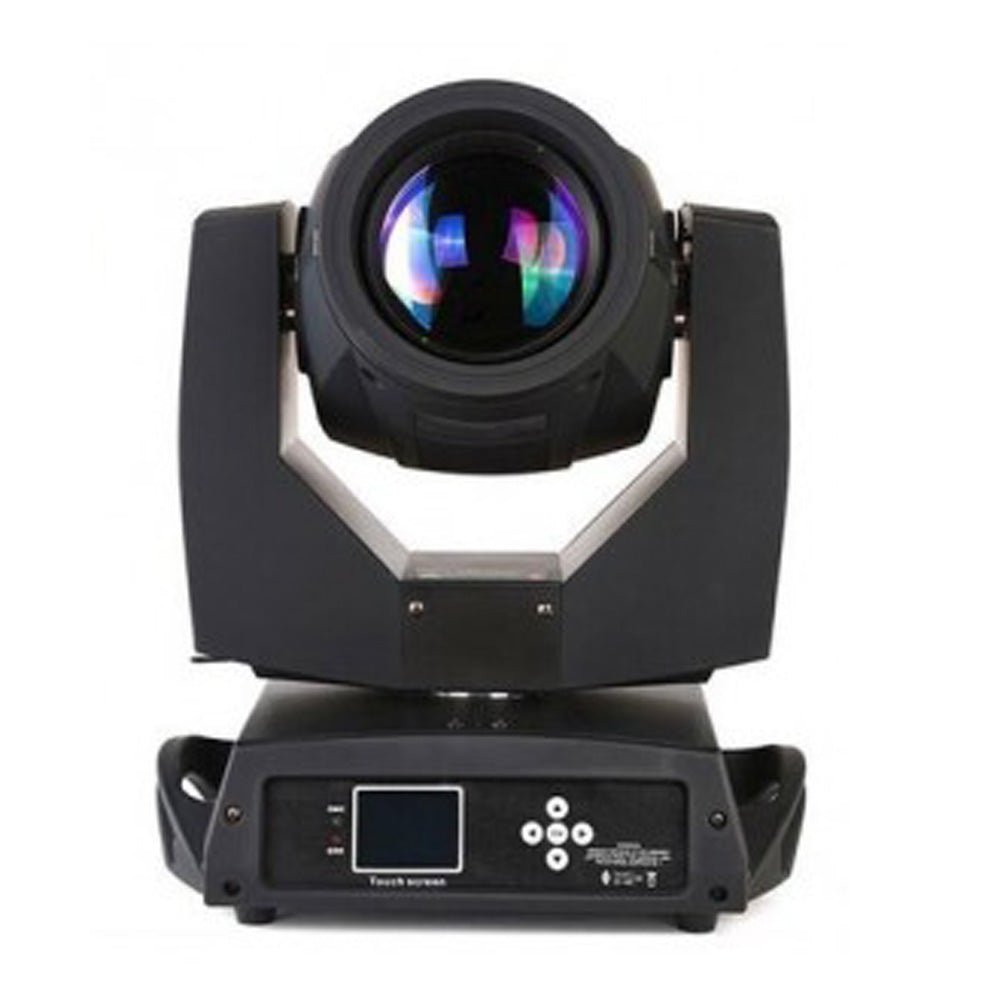

LB230 7R Laser stage light With flight case

LB230 7R Laser stage light With flight case

Regular price Dhs. 1,887.00
Regular price Dhs. 2,300.00 Sale price Dhs. 1,887.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Power supply: 100-240 V / 50-60 HZ
Nominal power: 400W

Source
Lamp: 230W OSRAM 7R
Color temperature: 8000K
Average Life: 2000H


Color parameter  : 14 colors +
Gobo white   : 17 fixed gobos + white
prism: 8-sided prism rotation, bilateral rotation, zoom
lens: High-precision optical lens
Dimmer: 0-100% linear damper
Strobe: 1 -12 times / s double strobe
screen: touch screen
Motor Quantity: 11pcs super-quiet motor, 16 bit drive
Control mode: Auto / sound / DMX / master-slave
DMX: 16 / 20CH
Protection class: IP20

Pan
/ Tilt Range of Motion
X-axis 540 ° electrical correction
Y-axis 270 ° electrical correction
with
speed adjustment  auto-correction function
Scanning speed: X-AXIS - 5s, Y-axis - 3s
Angle Beam: 8 ° X / Y of
the beam axis  Parrallel 0-3.8 °:

Function
Macro functions: Reset / lamp on or off can be controlled by the controller
Other functions
● Thermal shutdown circuit
● Current Protection Circuit
● Excellent ventilation and cooling effect by vertical axis fan
   display usage time

● Lamp
● Built-in analyzer error
● Input insulation protection signal
Package size: 465 * 380 *
550mm NW / GW: 17.5kg / 21Kg
