RL-B17F 7" High Definition Color Video Camera Intercoms Entry Access Control System Door Phone Doorbell

Write a review
  • Sale
  • Dhs. 540.00
  • Regular price Dhs. 650.00
Tax included. Shipping calculated at checkout.


RL-B17F 7" High Definition Color Video Camera Intercoms Entry Access Control System Door Phone Doorbell

  • Comes with an adaptor and 49 ft cacble for do-it-yourslef, 16 different chord melodies
  • 7" TFT high definition screen with low power consumption, no radiation.
  • Ultra thin designed indoor unit with touch pad. Electronic door lock release function.
  • Water-proof, damage-proof, oxidation-proof and abrasion-proof zinc alloy panel outdoor unit.
  • Outdoor gate control function.Outdoor monitoring, 16 different chimes for option.



Product description

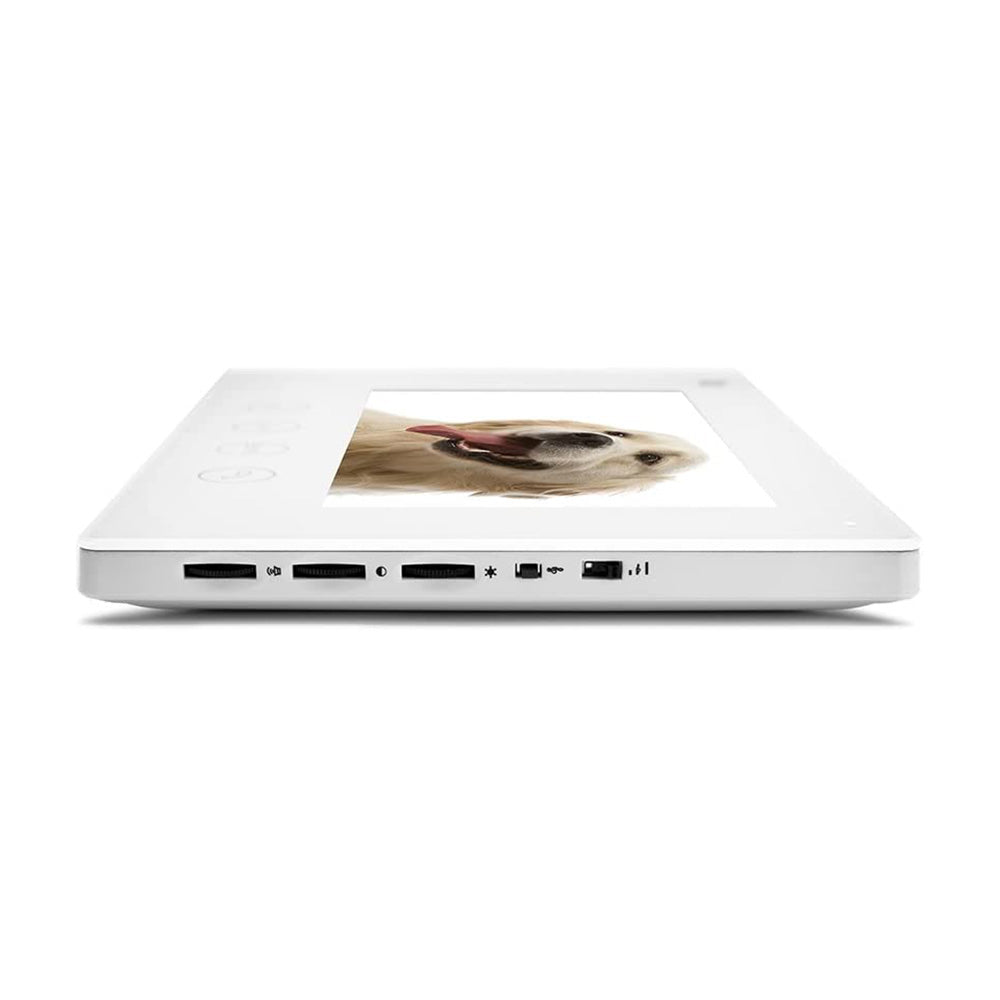

Indoor Unit

Screen Size:7 inch
Resolution:800(H) x 3RGB x 480(V)
Effective Area:5.9 in(H) x 3.4 in(W)
Outline Size:22.8 in(W) x 13.4 in(H) x 0.82 in(D)
Adaptor Input Voltage: AC100-240V 50Hz/60Hz
Adaptor Output Voltage & Current:DC12V 1100mA
Monitoring Time40S ± 10%
Talking Time:120S ± 10%
Working Distance164ft
Power Consumption: Static state <0.5W Working state <8W
Operating Temperature:14℉ - 104℉
Relative Humidity:10% - 90% (RH)

Outdoor Unit:

Working Distance of Infrared Light: >13ft
Operating Temperature:5℉ - 122℉
Resolution:>380 TV Lines(CMOS) >420 TV Lines (CCD) >500 TV lines (ACS)
Illumination:2LUX
Viewing Angle:55° wide angle(CMOS) 62° wide angle(CCD)
Outline Size: 5.11 in(H) x 2 in(W) x 1.85 in(D)
