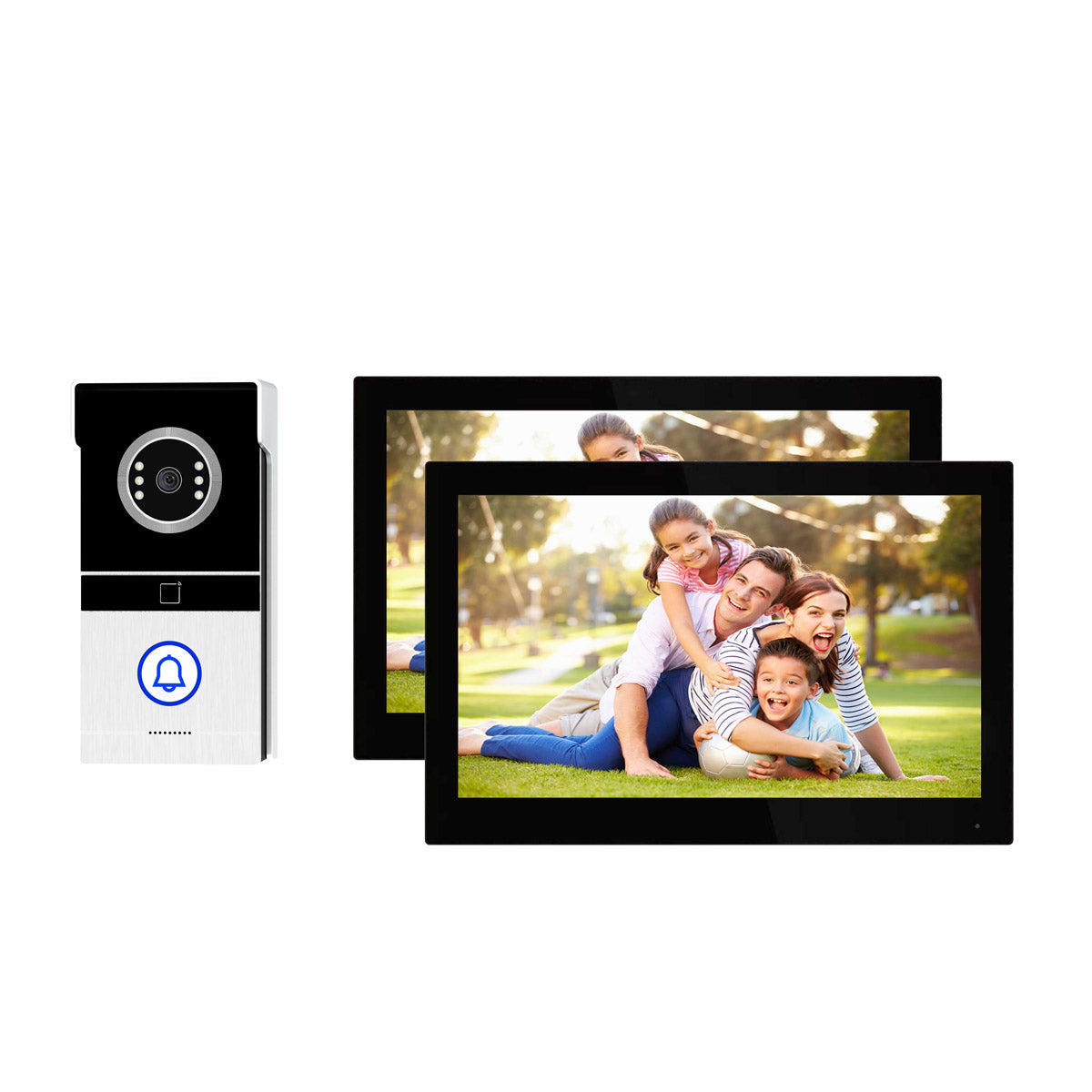

CRONY TUYATY75THTD1X2 Video Doorbell System 7 Inch AHD Wired Video Intercom with Touch Screen Monitor 1080P Camera Smart App Control Motion Detection Remote Unlocking Night Vision Support TF Card

【1】7" IPS Touch Display & 1080P AHD Camera
Equipped with a 7-inch high-definition IPS touchscreen and a 2.0MP AHD wide-angle camera with 6 IR LEDs, offering 120° viewing angle and clear night vision up to 3 meters.

【2】Smart App Control & Custom Settings
Supports remote unlocking, video calls, photo capture, recording, and motion detection via TUYA Smart App. Users can adjust brightness, contrast, volume, and select from 10 ringtones and multiple UI languages.

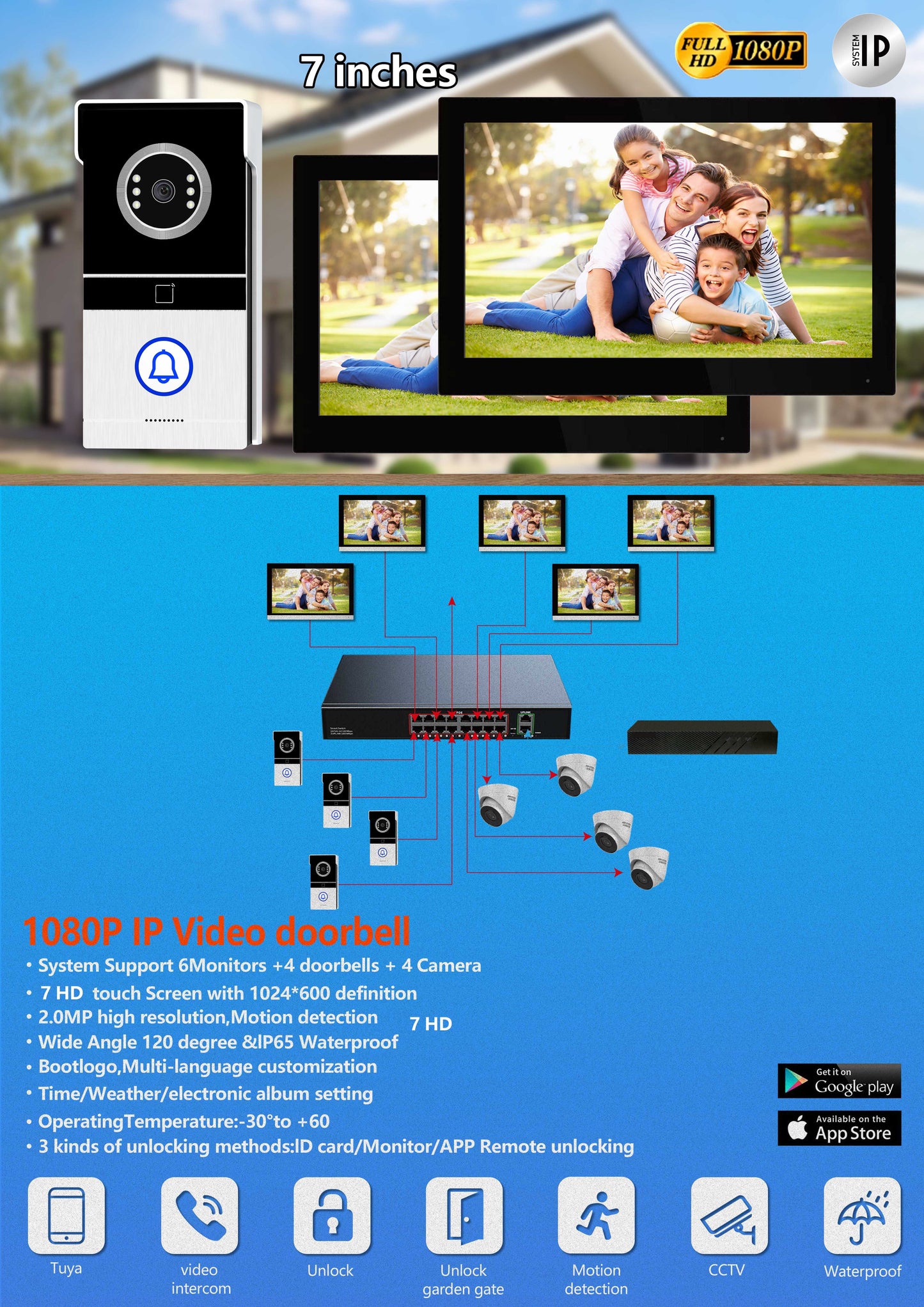

【3】Expandable Multi-Unit System
Connects up to 6 indoor monitors, 2 outdoor units, and 2 analog cameras. Compatible with Cat5/Cat6 or RVV4 cables. Ideal for apartments, homes, and multi-entry buildings.

【4】Multiple Unlock Methods & Durable Outdoor Design
Unlock using the indoor screen or RFID card. Weatherproof aluminum alloy camera housing with rain cover ensures reliable operation between -20℃ to +60℃ in all conditions.

Model: TUYATY75T-HTD1*2 7inch AHD Wires Video doorphone

• Function: Supports remote control of calling/unlocking/recording/taking photos/leaving messages/motion detection through the TUYA Smart APP
• Visual intercom, monitoring, indoor unlocking, no disturbance mode, ringtone selection, color, brightness, contrast, volume adjustment
7-inch IPS touch screen display
• Resolution: 1024 * 600
• Material: ABS+high hardness glass surface plate
• Ringtones: 10 songs
• Memory: Supports up to 64GB TF card
• Languages: Chinese, English, Russian, French, German, Portuguese, Spanish
• Power specifications: AC100-240V 50Hz-60Hz DC15V 1.2A (optional for American, European, British, and Australian standards)
• Power: Standby state 0.2W Working state: 30W
• Operation method: Touch screen display
• Usage distance: 150 meters
• Use wire: Cat5 or cat6 network cable connected
• Product size: 237 * 117 * 30mm
• Maximum combination: 2 door mounted units+2 analog cameras+6 indoor units
• Installation method: fixed with hanging board
===========================================================================
• Camera: AHD HD 2.0MP, 1/2.9 '' CMOS, 2.8 MM
• Photosensitivity: 0.001 lux
• Night vision: LED * 6
• Night vision distance: 3 meters
• Camera angle: 120 °
• Operating temperature: -40--+60 ℃
• Material: Aluminum alloy panel+rain cover
• Rain proof: Rain cover
• Product size: 168 * 82 * 35mm (including rain cover)
• Use wire: RVV4
• Installation method: Flat installation
• Power supply mode: indoor unit power supply, door unit power supply
• Unlocking method: indoor unit unlocking, card swiping unlocking
• Unlock signal: voltage signal; Open normally closed signal
• Optional shell color: gold/silver
• Working temperature: -20--+60 ℃
